Cam Lock Cam

CAM LOCK CAMS

These cam lock cams are compatible with all arcade game locks with the oval shape. All cams are 3mm (0.119") thick and are various lengths and shapes as noted below.

COMPATIBLE MACHINES

- KeyMaster     - PrizerLocker     - Smart Industries Cranes     - Big Buck Hunter     - Etc.

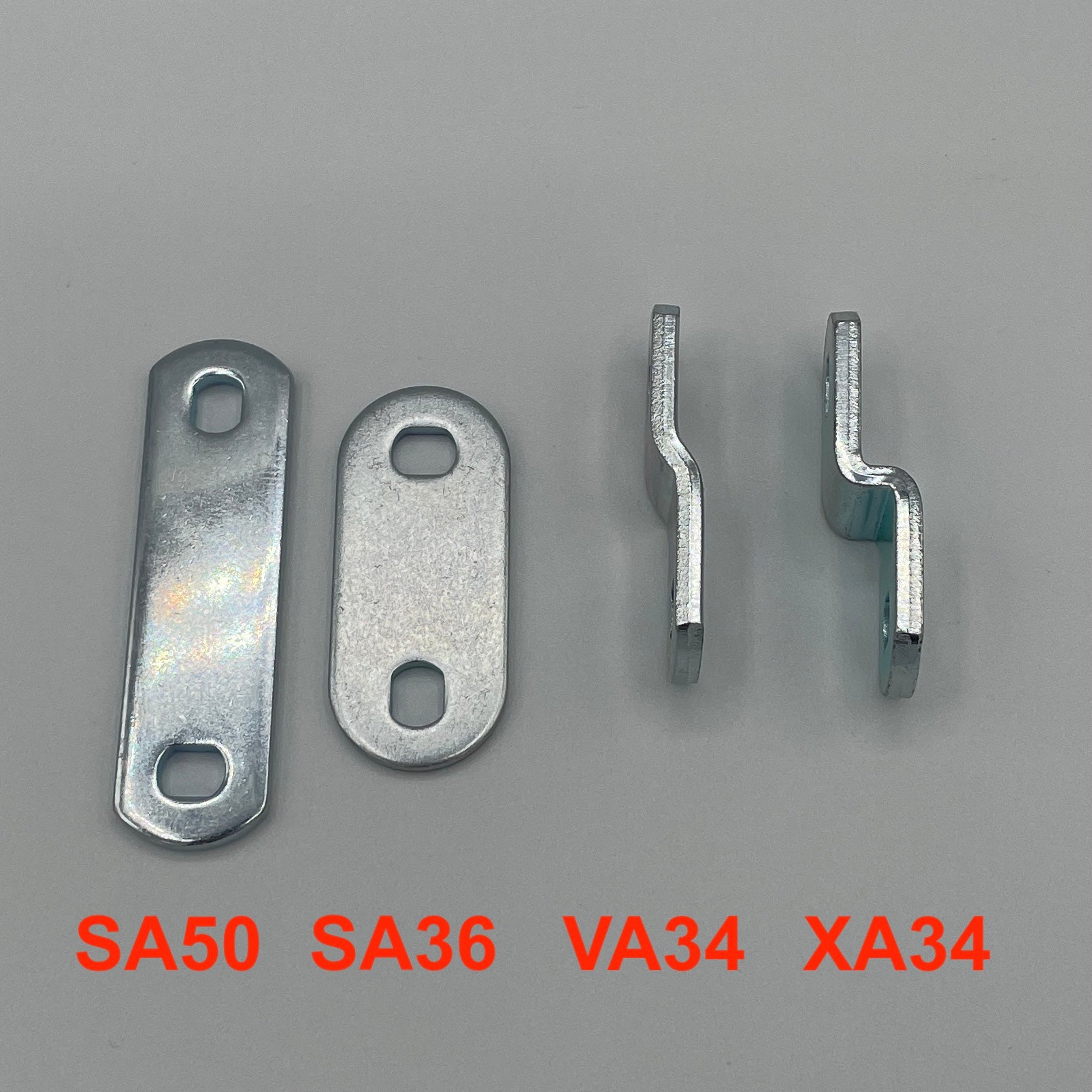

TYPES

VA34 - Small Offset - 2.78mm (0.109") Offset
                                      16.00mm (0.629") Wide
                                      41.80mm (1.646") Long

XA34 - Large Offset - 5.50mm (0.216") Offset
                                       16.00mm (0.629") Wide
                                       42.00mm (1.656") Long

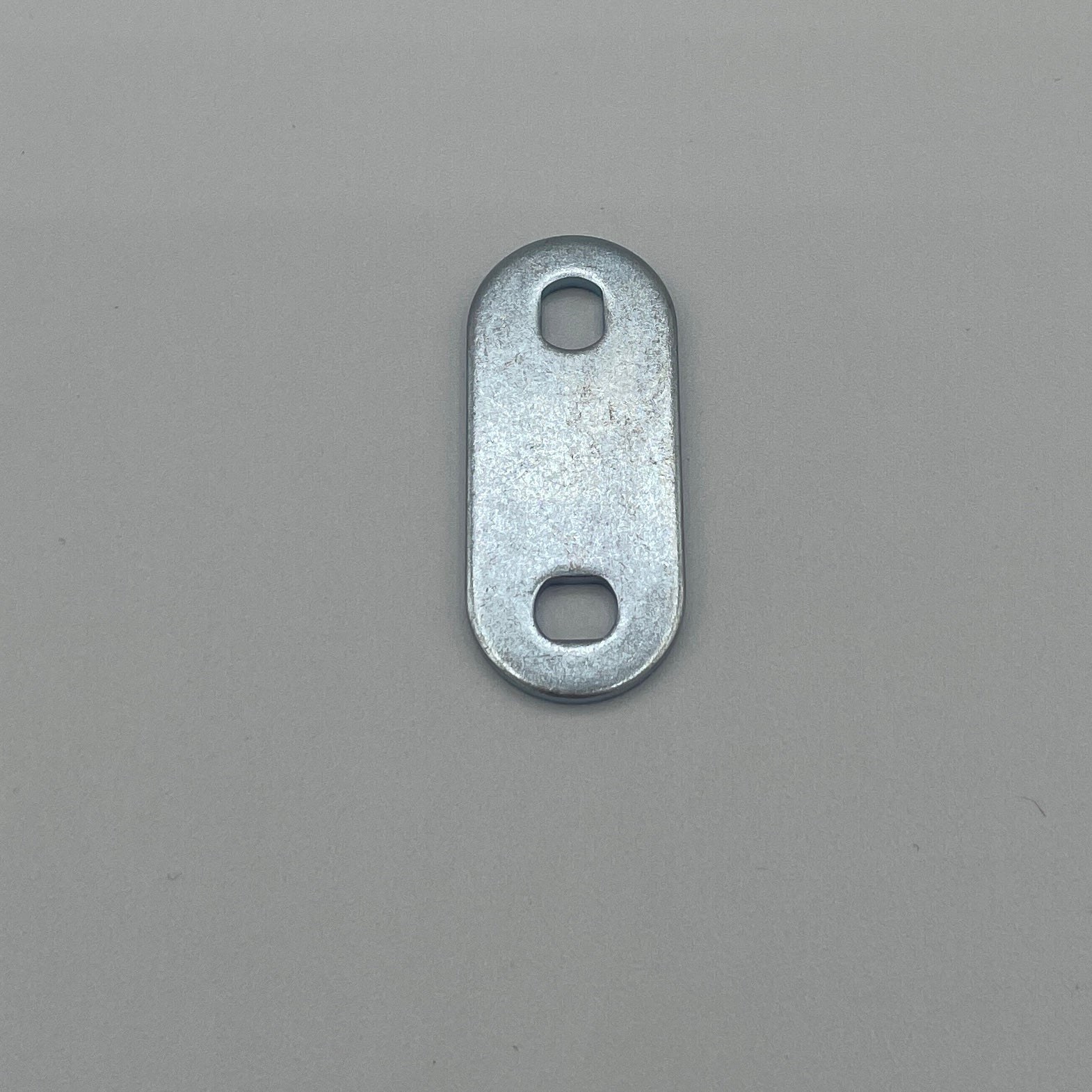

SA36 - Short Straight - 16.00mm (0.629") Wide
                                         44.00mm (1.733") Long

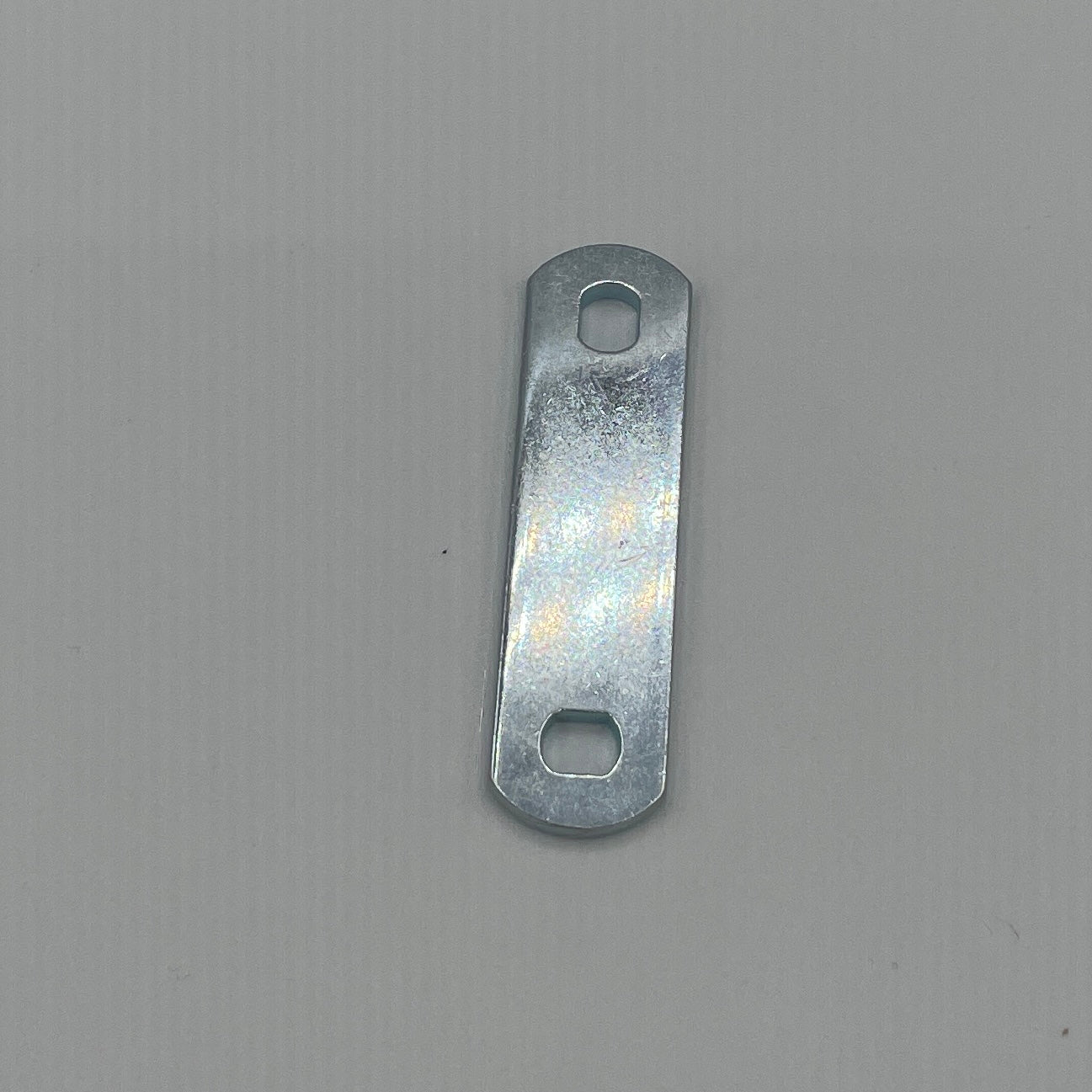

SA50 - Long Straight - 16.00mm (0.629") Wide
                                        57.89mm (2.279") Long

REQUIRMENTS

Standard cam lock with oval shape double flat shaft

INCLUDED IN THE KIT

• x1 - Cam (Of Selected Part Number)
